dotted_chart_sink

Outputs the events as a dotted chart graph.

Parameters

  • title: str default: Dotted chart of events
    The title of the dotted chart.
  • max_events: int default: None
    Max number of events to show.
  • time_window_seconds: int default: None
    Max time window of events to show.
  • point_size: int default: 100
    The size of each event point.
  • show_legend: boolean default: False
    Whether the legend should be shown.
  • gif_path: str default: None
    The path where the gif of the stream should be stored. If None is specified, then the output is rendered on the notebook directly.
  • fps: int default: 5
    The number of frame per seconds, in case the output is stored as a GIF.

Example

from pybeamline.sources import string_test_source
from pybeamline.sinks.dotted_chart_sink import dotted_chart_sink

log_original = ["ABCD"]*5 + ["ACBD"]*5
log_after_drift = ["AEFG"]*5 + ["AFEG"]*5

string_test_source(log_original + log_after_drift).pipe(

).sink(dotted_chart_sink(max_events=25, gif_path="test_dotted_chart_sink.gif"))

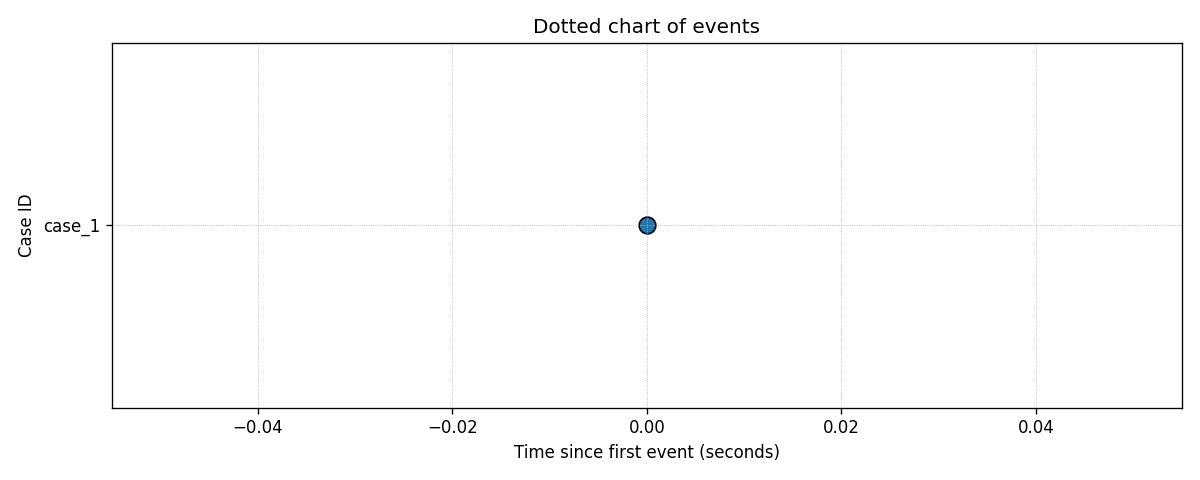

Output:
