heatmap_sink

Outputs the events as a heatmap graph. Each element of the stream to be presented should have the following shape: ((a, b), freq).

Parameters

title: str default: Distribution
The title of the heatmap.
value_label: str default: frequency
The label of the value of the heatmap.
gif_path: str default: None
The path where the gif of the stream should be stored. If None is specified, then the output is rendered on the notebook directly.
fps: int default: 5
The number of frame per seconds, in case the output is stored as a GIF.

Example

from pybeamline.sources import string_test_source
from pybeamline.mappers.to_directly_follow_relations import to_directly_follow_relations
from pybeamline.utils.skip_events import skip_events
from pybeamline.sinks.heatmap_sink import heatmap_sink

class count_latest(BaseMap):
    def __init__(self, window_size=5):
        self.observations = dict()
        self.window_size = window_size
        self.window = list()

    def transform(self, value):
        if value not in self.observations.keys():
            self.observations[value] = 0
        self.observations[value] += 1
        self.window.append(value)
        if len(self.window) > self.window_size:
            removed = self.window.pop(0)
            self.observations[removed] -= 1
            if self.observations[removed] == 0:
                del self.observations[removed]
        return [dict(self.observations)]

log_original = ["ABCD"]*50 + ["ACBD"]*50
log_after_drift = ["ABCE"]*100 + ["ACBF"]*100
string_test_source(log_original + log_after_drift).pipe(
  to_directly_follow_relations(),
    count_latest(window_size=200),
    skip_events(events_to_skip=20)
).sink(heatmap_sink(title="Directly-follows relation distribution", gif_path='test_heatmap_sink.gif', fps=3))

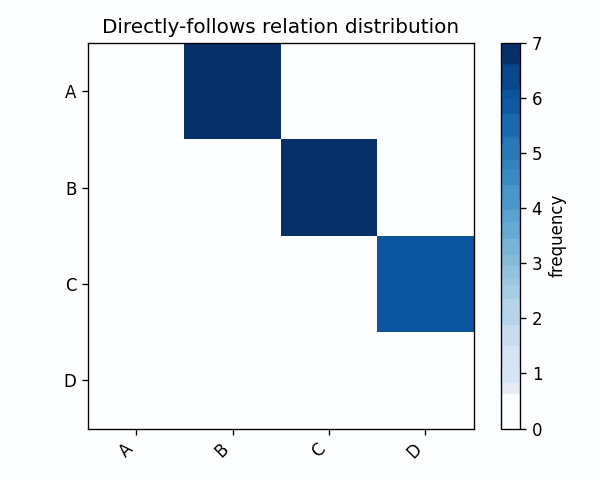

Output:
