oc_visualizer_sink

Outputs the events from oc_merge as a graph.

See also oc_merge and oc_operator.

Parameters

  • gif_path: str default: None
    The path where the gif of the stream should be stored. If None is specified, then the output is rendered on the notebook directly.
  • fps: int default: 5
    The number of frame per seconds, in case the output is stored as a GIF.
  • mode: str default RGB
    The GIF color mode.
  • bg_color: tuple default: (255, 255, 255)
    The background color of the GIF.
  • center: boolean default: True
    Whether the content should be centered.
  • display_in_notebook: boolean default: True
    Whether the result should be shown on the notebook.

Example

from pybeamline.algorithms.oc.oc_merge_operator import oc_merge_operator
from pybeamline.algorithms.oc.oc_operator import oc_operator
from pybeamline.sinks.oc_visualizer_sink import oc_visualizer_sink
from pybeamline.sources.dict_ocel_test_source import dict_test_ocel_source

trace_1 = [
    {"activity": "Register Customer", "objects": {"Customer": ["c1"]}},
    {"activity": "Create Order", "objects": {"Customer": ["c1"], "Order": ["o1"]}},
    {"activity": "Add Item", "objects": {"Order": ["o1"], "Item": ["i1"]}},
    {"activity": "Add Item", "objects": {"Order": ["o1"], "Item": ["i2"]}},
    {"activity": "Ship Order", "objects": {"Item": ["i1", "i2"], "Order": ["o1"]}}
]

test_source = dict_test_ocel_source([(trace_1, 10)]).pipe(
    oc_operator(),
    oc_merge_operator(),
).subscribe(oc_visualizer_sink(gif_path='test_oc_visualizer_sink.gif', fps=1))

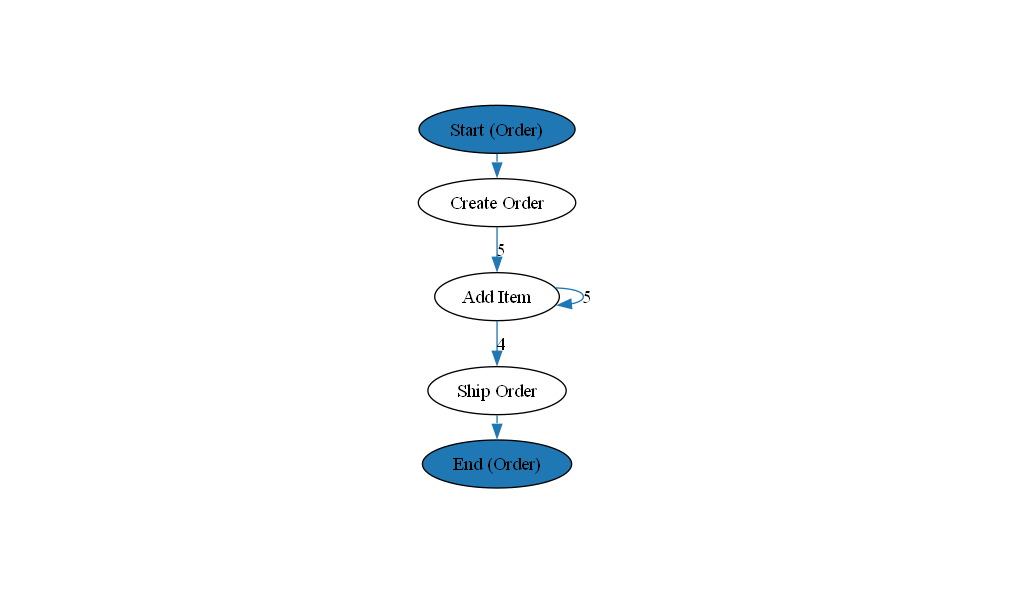

Output:
